Why do we need OpenAPI Specifications?
1. The OAS is backed by industry leaders, representing strong awareness and mindshare in the industry.
2. OAS is a popular open-source framework to create and define RESTful APIs.
3. Easy to implement and wide range of integrated workflows.
But what if, your application doesn’t have OpenAPI specs? Can you create one?
The short answer is, YES!
We will generate a HAR file from the browser’s traffic and then convert that HAR to OpenAPI specifications using an open-source tool.
What is a HAR file?
The HTTP Archive Format (HAR) is a JSON-formatted file that is used to trace all web requests made by a browser to a web application. We can export the logs into HAR format which can be then analyzed through the free HAR analyzer available.
To create these specifications for your application’s API you just need to follow the following steps-
For demonstration purposes, we will use crAPI.

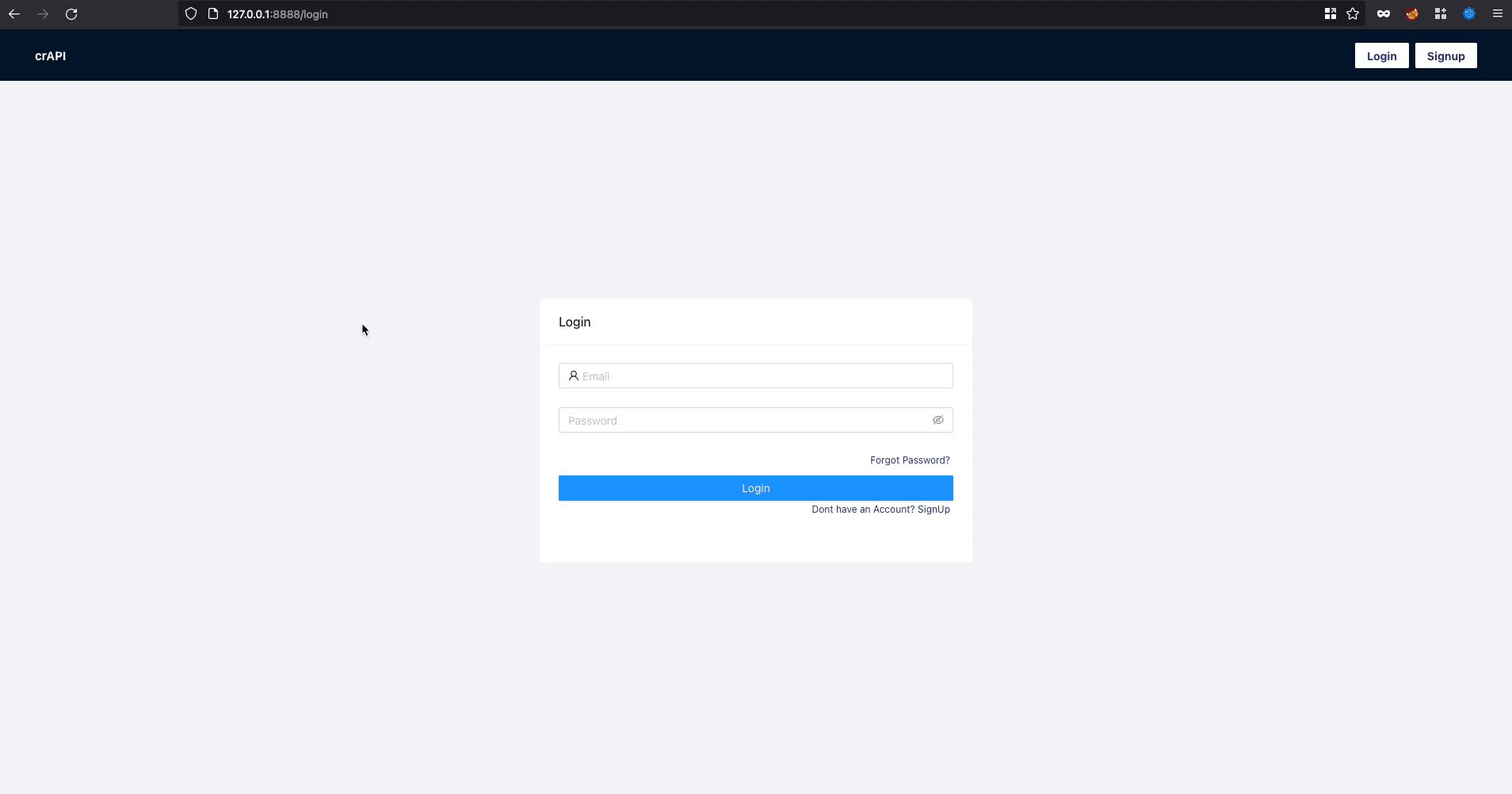

1. Use Firefox to navigate through your application.

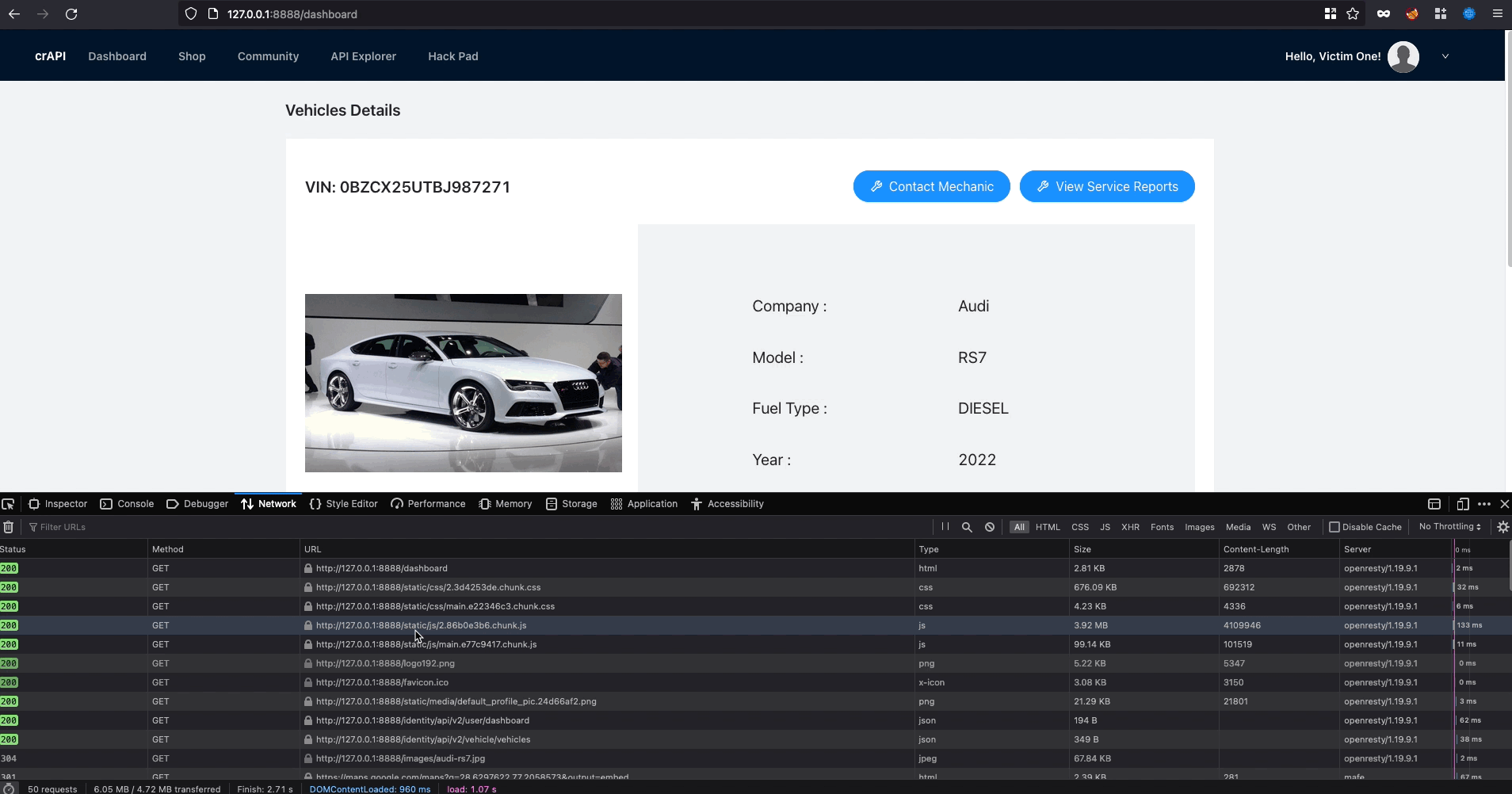

2. Go to browser’s “Inspect-element” pressing F12 then click on the “Network” tab.
3. Now use the domain: filter and select “XHR” as an additional filter.
4. This will remove all of the noise from the network logs, leaving just API requests from your domain.
5. Now navigate the application using a valid set of credentials and data. This is done to ensure that all of the application’s API requests are covered.
6. After that, we can export our API to HAR format. Right-click on Network logs and choose “Save all as HAR.”
7. Here we will use an open-source tool called Avantation to generate specifications from the HAR file.
8. To install Avantation, simply use npm install -g avantation
9. Once it is installed and running, run avantation
10.This will generate an openapi.yml file, which is actually an OpenAPI specification for your application’s API.
11. We can now access and view our API specification file in Swagger-editor.
Using this technique we can generate API specifications for our application and use them to scan with LEVO, an intelligent API security testing tool.
